Class for Lumissil IS31FL3741 OEM evaluation board, buffered. More...
#include <Adafruit_IS31FL3741.h>

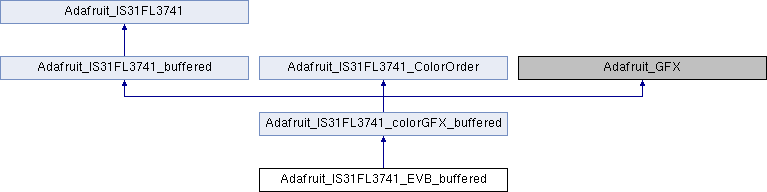

Inheritance diagram for Adafruit_IS31FL3741_EVB_buffered:
Public Member Functions | |
| Adafruit_IS31FL3741_EVB_buffered (IS3741_order order=IS3741_BGR) | |
| Constructor for Lumissil IS31FL3741 OEM evaluation board, 13x9 pixels, buffered. More... | |
| void | drawPixel (int16_t x, int16_t y, uint16_t color) |
| Adafruit GFX low level accessor - sets an RGB pixel value, handles rotation and pixel arrangement. More... | |
 Public Member Functions inherited from Adafruit_IS31FL3741_colorGFX_buffered | |
| Adafruit_IS31FL3741_colorGFX_buffered (uint8_t width, uint8_t height, IS3741_order order) | |
| Constructor for Adafruit_IS31FL3741_colorGFX_buffered object. This is used internally by the library, not user code. More... | |
| void | fill (uint16_t color=0) |
| Sets all pixels of a buffered-and-GFX-subclassed object. Saves us implementing this in every subclass. More... | |
| Public Member Functions inherited from Adafruit_IS31FL3741_buffered | |
| Adafruit_IS31FL3741_buffered () | |
| Constructor for buffered IS31FL3741. LED data is stored in RAM and only pushed to device when show() is explicitly called. | |
| bool | begin (uint8_t addr=IS3741_ADDR_DEFAULT, TwoWire *theWire=&Wire) |
| Initialize I2C and IS31FL3741 hardware, clear LED buffer. More... | |
| void | show (void) |
| Push buffered LED data from RAM to device. More... | |
| uint8_t * | getBuffer (void) |
| Return address of LED buffer. More... | |
| Public Member Functions inherited from Adafruit_IS31FL3741 | |
| Adafruit_IS31FL3741 () | |
| Constructor for IS31FL3741 LED driver. | |
| bool | begin (uint8_t addr=IS3741_ADDR_DEFAULT, TwoWire *theWire=&Wire) |
| Initialize I2C and IS31FL3741 hardware. More... | |
| bool | reset (void) |
| Perform software reset, update all registers to POR values. More... | |
| bool | enable (bool en) |
| Enable/disable output via the shutdown register bit. More... | |
| bool | unlock (void) |
| Allows changing of command register by writing 0xC5 to 0xFE. More... | |
| bool | setGlobalCurrent (uint8_t current) |
| Set global current-mirror from 0 (off) to 255 (brightest). More... | |
| uint8_t | getGlobalCurrent (void) |
| Get the global current-mirror register setting. More... | |
| bool | setLEDscaling (uint16_t lednum, uint8_t scale) |
| Set the scaling level for a single LED. More... | |
| bool | setLEDscaling (uint8_t scale) |
| Set the scaling level for all LEDs. Optimized for fewer I2C transfers vs. setting each individually. More... | |
| bool | setLEDPWM (uint16_t lednum, uint8_t pwm) |
| Set the PWM level for a single LED. More... | |
| bool | fill (uint8_t fillpwm=0) |
| Set the PWM value for all LEDs - great for clearing the whole display at once. Optimized for fewer I2C transfers vs. setting each individually. More... | |
| void | show (void) |
| Empty function makes direct & buffered code more interchangeable. Direct classes have an immediate effect when setting LED states, only buffered ones need an explicit call to show(), but it gets annoying when moving code back and forth. So this does nothing in the direct case. For code that you KNOW will always be strictly unbuffered, don't call this, it sets a bad precedent. | |
| Public Member Functions inherited from Adafruit_IS31FL3741_ColorOrder | |
| Adafruit_IS31FL3741_ColorOrder (IS3741_order order) | |
| Constructor for Adafruit_IS31FL3741_ColorOrder. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from Adafruit_IS31FL3741 | |
| static uint16_t | color565 (uint8_t red, uint8_t green, uint8_t blue) |
| Converter for RGB888-format color (separate) to RGB565-format. More... | |
| static uint16_t | color565 (uint32_t color) |
| Converter for RGB888-format color (packed) to RGB565-format. More... | |
| static uint32_t | Color (uint8_t r, uint8_t g, uint8_t b) |
| Convert separate red, green and blue values into a single "packed" 24-bit RGB color. More... | |
| static uint8_t | gamma8 (uint8_t x) |
| An 8-bit gamma-correction function for basic pixel brightness adjustment. Makes color transitions appear more perceptially correct. More... | |
| static uint32_t | gamma32 (uint32_t x) |
| A gamma-correction function for 32-bit packed RGB colors. Makes color transitions appear more perceptially correct. More... | |
| static uint32_t | ColorHSV (uint16_t hue, uint8_t sat=255, uint8_t val=255) |
| Convert hue, saturation and value into a packed 32-bit RGB color that can be passed to setPixelColor() or Color565(). Swiped directly from Adafruit_NeoPixel. More... | |
| Public Attributes inherited from Adafruit_IS31FL3741_ColorOrder | |
| uint8_t | rOffset |
| Index of red element within RGB triplet. | |
| uint8_t | gOffset |
| Index of green element within RGB triplet. | |
| uint8_t | bOffset |
| Index of blue element within RGB triplet. | |
| Protected Member Functions inherited from Adafruit_IS31FL3741 | |
| bool | selectPage (uint8_t page) |
| Select a given bank/page in the chip memory for subsequent reads/writes. More... | |
| bool | setLEDvalue (uint8_t first_page, uint16_t lednum, uint8_t value) |
| Set either the PWM or scaling level for a single LED; used by the setLEDPWM() and setLEDscaling() functions, not directly. More... | |
| bool | fillTwoPages (uint8_t first_page, uint8_t value) |
| Fill two pages of IS31FL3741 registers related to PWM levels or scaling; used by the fill() and setLEDscaling() functions, not directly. More... | |
| Protected Attributes inherited from Adafruit_IS31FL3741_buffered | |
| uint8_t | ledbuf [352] |
| LEDs in RAM. +1 byte is intentional, see show() | |
| Protected Attributes inherited from Adafruit_IS31FL3741 | |
| int8_t | _page = -1 |
| Cached value of the page we're currently addressing. | |
| Adafruit_I2CDevice * | _i2c_dev = NULL |
| Pointer to I2C device. | |
Detailed Description
Class for Lumissil IS31FL3741 OEM evaluation board, buffered.
Constructor & Destructor Documentation
◆ Adafruit_IS31FL3741_EVB_buffered()
|
inline |
Constructor for Lumissil IS31FL3741 OEM evaluation board, 13x9 pixels, buffered.
- Parameters
-
order One of the IS3741_order enumeration types for RGB sequence. Default is IS3741_BGR.
Member Function Documentation
◆ drawPixel()
| void Adafruit_IS31FL3741_EVB_buffered::drawPixel | ( | int16_t | x, |
| int16_t | y, | ||
| uint16_t | color | ||
| ) |
Adafruit GFX low level accessor - sets an RGB pixel value, handles rotation and pixel arrangement.
- Parameters
-
x The x position, starting with 0 for left-most side y The y position, starting with 0 for top-most side color 16-bit RGB565 packed color (expands to 888 for LEDs).
The documentation for this class was generated from the following files:
- Adafruit_IS31FL3741.h
- Adafruit_IS31FL3741.cpp
