Derived class for I2C output component drivers. More...

#include <WipperSnapper_I2C_Driver_Out.h>

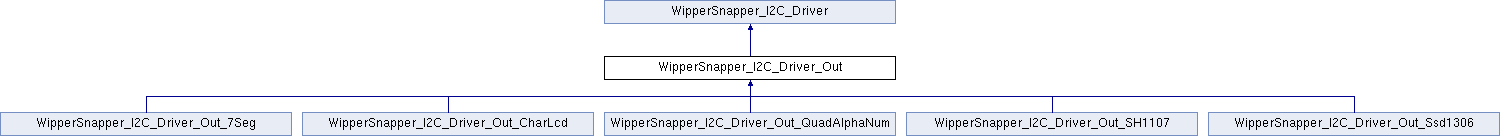

Inheritance diagram for WipperSnapper_I2C_Driver_Out:

Public Member Functions
	WipperSnapper_I2C_Driver_Out (TwoWire *i2c, uint16_t sensorAddress)
	Creates a new I2C output component driver. More...

virtual	~WipperSnapper_I2C_Driver_Out ()
	Destructor for an I2C output component.

virtual void	WriteMessage (const char *message)
	Writes a message to an i2c output device. More...

virtual void	ConfigureSSD1306 (uint8_t width, uint8_t height, uint8_t text_size, uint8_t rotation=0)
	Configures a SSD1306 OLED display. Must be called before driver begin() More...

virtual void	WriteMessageSSD1306 (const char *message)
	Writes a message to the SSD1306 display. More...

virtual void	ConfigureI2CBackpack (int32_t brightness, uint32_t alignment)
	Configures a LED backpack. More...

virtual void	SetLedBackpackBrightness (uint8_t b)
	Sets the brightness of the LED backpack. More...

void	WriteLedBackpack (wippersnapper_i2c_v1_LEDBackpackWrite *msg_write)
	Writes a message to the LED backpack. More...

virtual void	ConfigureCharLcd (uint32_t rows, uint32_t cols)
	Configures a character LCD. More...

void	EnableCharLcdBacklight (bool enable)
	Turns the character LCD backlight on or off. More...

void	WriteMessageCharLCD (wippersnapper_i2c_v1_CharLCDWrite *write_char_lcd, bool enable_backlight=true)
	Writes a message to the LCD. More...

Public Member Functions inherited from WipperSnapper_I2C_Driver
	WipperSnapper_I2C_Driver (TwoWire *i2c, uint16_t sensorAddress)
	Instanciates an I2C sensor. More...

virtual	~WipperSnapper_I2C_Driver ()
	Destructor for an I2C sensor.

bool	begin ()
	Initializes the I2C sensor and begins I2C. More...

void	setSensorPeriod (float period, wippersnapper_i2c_v1_SensorType sensorType)
	Sets the sensor's period, provided a wippersnapper_i2c_v1_SensorType. More...

void	configureDriver (wippersnapper_i2c_v1_I2CDeviceInitRequest *msgDeviceInitReq)
	Uses an I2CDeviceInitRequest message to configure the sensors belonging to the driver. More...

uint16_t	getI2CAddress ()
	Gets the I2C device's address. More...

virtual long	getSensorCO2Period ()
	Base implementation - Returns the co2 sensor's period, if set. More...

virtual long	getSensorCO2PeriodPrv ()
	Base implementation - Returns the previous time interval at which the co2 sensor was queried last. More...

virtual void	setSensorCO2PeriodPrv (long period)
	Sets a timestamp for when the co2 sensor was queried. More...

virtual bool	getEventCO2 (sensors_event_t *co2Event)
	Gets a sensor's CO2 value. More...

virtual long	getSensorECO2Period ()
	Base implementation - Returns the eCO2 sensor's period, if set. More...

virtual long	getSensorECO2PeriodPrv ()
	Base implementation - Returns the previous time interval at which the eCO2 sensor was queried last. More...

virtual void	setSensorECO2PeriodPrv (long period)
	Sets a timestamp for when the eCO2 sensor was queried. More...

virtual bool	getEventECO2 (sensors_event_t *eco2Event)
	Gets a sensor's eCO2 value. More...

virtual long	getSensorTVOCPeriod ()
	Base implementation - Returns the TVOC sensor's period, if set. More...

virtual long	getSensorTVOCPeriodPrv ()
	Base implementation - Returns the previous time interval at which the TVOC sensor was queried last. More...

virtual void	setSensorTVOCPeriodPrv (long period)
	Sets a timestamp for when the TVOC sensor was queried. More...

virtual bool	getEventTVOC (sensors_event_t *tvocEvent)
	Gets a sensor's TVOC value. More...

virtual long	getSensorAmbientTempPeriod ()
	Base implementation - Returns the ambient temperature (°C) sensor's period, if set. More...

virtual long	getSensorAmbientTempPeriodPrv ()
	Base implementation - Returns the previous time interval at which the ambient temperature sensor (°C) was queried last. More...

virtual void	setSensorAmbientTempPeriodPrv (long periodPrv)
	Sets a timestamp for when the ambient temperature sensor (°C) was queried. More...

virtual bool	getEventAmbientTemp (sensors_event_t *tempEvent)
	Base implementation - Reads an ambient temperature sensor (°C). Expects value to return in the proper SI unit. More...

virtual long	getSensorRelativeHumidityPeriod ()
	Base implementation - Returns the humidity sensor's period, if set. More...

virtual long	getSensorRelativeHumidityPeriodPrv ()
	Base implementation - Returns the previous time interval at which the humidity sensor was queried last. More...

virtual void	setSensorRelativeHumidityPeriodPrv (long periodPrv)
	Sets a timestamp for when the temperature sensor was queried. More...

virtual bool	getEventRelativeHumidity (sensors_event_t *humidEvent)
	Base implementation - Reads a humidity sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorPressurePeriod ()
	Base implementation - Returns the pressure sensor's period, if set. More...

virtual long	getSensorPressurePeriodPrv ()
	Base implementation - Returns the previous time interval at which the pressure sensor was queried last. More...

virtual void	setSensorPressurePeriodPrv (long period)
	Sets a timestamp for when the pressure sensor was queried. More...

virtual bool	getEventPressure (sensors_event_t *pressureEvent)
	Base implementation - Reads a pressure sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorAltitudePeriod ()
	Base implementation - Returns the Altitude sensor's period, if set. More...

virtual long	getSensorAltitudePeriodPrv ()
	Base implementation - Returns the previous time interval at which the Altitude sensor was queried last. More...

virtual void	setSensorAltitudePeriodPrv (long period)
	Sets a timestamp for when the Altitude sensor was queried. More...

virtual bool	getEventAltitude (sensors_event_t *altitudeEvent)
	Base implementation - Reads a Altitude sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorObjectTempPeriod ()
	Base implementation - Returns the object temperature sensor's period, if set. More...

virtual long	getSensorObjectTempPeriodPrv ()
	Base implementation - Returns the previous time interval at which the object temperature sensor was queried last. More...

virtual void	setSensorObjectTempPeriodPrv (long period)
	Sets a timestamp for when the object temperature sensor was queried. More...

virtual bool	getEventObjectTemp (sensors_event_t *objectTempEvent)
	Base implementation - Reads a object temperature sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorLightPeriod ()
	Base implementation - Returns the object light sensor's period, if set. More...

virtual long	getSensorLightPeriodPrv ()
	Base implementation - Returns the previous time interval at which the light sensor was queried last. More...

virtual void	setSensorLightPeriodPrv (long period)
	Sets a timestamp for when the light sensor was queried. More...

virtual bool	getEventLight (sensors_event_t *lightEvent)
	Base implementation - Reads a object light sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorPM10_STDPeriod ()
	Base implementation - Returns the object pm10 standard sensors' period, if set. More...

virtual long	getSensorPM10_STDPeriodPrv ()
	Base implementation - Returns the previous time interval at which the pm10 std. sensor was queried last. More...

virtual void	setSensorPM10_STDPeriodPrv (long period)
	Sets a timestamp for when the light sensor was queried. More...

virtual bool	getEventPM10_STD (sensors_event_t *pm10StdEvent)
	Base implementation - Reads a object pm10 std. sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorPM25_STDPeriod ()
	Base implementation - Returns the object pm25 standard sensors' period, if set. More...

virtual long	getSensorPM25_STDPeriodPrv ()
	Base implementation - Returns the previous time interval at which the pm25 std. sensor was queried last. More...

virtual void	setSensorPM25_STDPeriodPrv (long period)
	Sets a timestamp for when the light sensor was queried. More...

virtual bool	getEventPM25_STD (sensors_event_t *pm25StdEvent)
	Base implementation - Reads a object pm25 std. sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorPM100_STDPeriod ()
	Base implementation - Returns the object pm100 standard sensors' period, if set. More...

virtual long	getSensorPM100_STDPeriodPrv ()
	Base implementation - Returns the previous time interval at which the pm100 std. sensor was queried last. More...

virtual void	setSensorPM100_STDPeriodPrv (long period)
	Sets a timestamp for when the light sensor was queried. More...

virtual bool	getEventPM100_STD (sensors_event_t *pm100StdEvent)
	Base implementation - Reads a object pm100 std. sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorUnitlessPercentPeriod ()
	Base implementation - Returns the object unitless % sensor period, if set. More...

virtual long	getSensorUnitlessPercentPeriodPrv ()
	Base implementation - Returns the previous time interval at which the unitless % sensor was queried last. More...

virtual void	setSensorUnitlessPercentPeriodPrv (long period)
	Sets a timestamp for when the unitless % sensor was queried. More...

virtual bool	getEventUnitlessPercent (sensors_event_t *unitlessPercentEvent)
	Base implementation - Reads a object unitless % std. sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorVoltagePeriod ()
	Base implementation - Returns the voltage sensor's period. More...

virtual long	getSensorVoltagePeriodPrv ()
	Base implementation - Returns the previous time interval at which the voltage sensor was queried last. More...

virtual void	setSensorVoltagePeriodPrv (long period)
	Sets a timestamp for when the voltage sensor was queried. More...

virtual bool	getEventVoltage (sensors_event_t *voltageEvent)
	Base implementation - Reads a voltage sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorCurrentPeriod ()
	Base implementation - Returns the current sensor's period. More...

virtual long	getSensorCurrentPeriodPrv ()
	Base implementation - Returns the previous time interval at which the current sensor was queried last. More...

virtual void	setSensorCurrentPeriodPrv (long period)
	Sets a timestamp for when the current sensor was queried. More...

virtual bool	getEventCurrent (sensors_event_t *currentEvent)
	Base implementation - Reads a current sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorRawPeriod ()
	Base implementation - Returns the raw sensor's period, if set. More...

virtual long	getSensorRawPeriodPrv ()
	Base implementation - Returns the previous time interval at which the raw sensor was queried last. More...

virtual void	setSensorRawPeriodPrv (long period)
	Sets a timestamp for when the raw sensor was queried. More...

virtual bool	getEventRaw (sensors_event_t *rawEvent)
	Gets a sensor's Raw value. More...

virtual void	disableAmbientTempF ()
	Disables the device's ambient temperature (°F) sensor, if it exists.

virtual long	getSensorAmbientTempFPeriod ()
	Base implementation - Returns the ambient temperature (°F) sensor's period, if set. More...

virtual long	getSensorAmbientTempFPeriodPrv ()
	Base implementation - Returns the previous time interval at which the ambient temperature sensor (°F) was queried last. More...

virtual void	setSensorAmbientTempFPeriodPrv (long period)
	Sets a timestamp for when the ambient temperature sensor (°F) was queried. More...

virtual bool	getEventAmbientTempF (sensors_event_t *AmbientTempFEvent)
	Helper function to obtain a sensor's ambient temperature value in °F. Requires `getEventAmbientTemp()` to be fully implemented by a driver. More...

virtual long	getSensorObjectTempFPeriod ()
	Base implementation - Returns the object temperature (°F) sensor's period, if set. More...

virtual long	getSensorObjectTempFPeriodPrv ()
	Base implementation - Returns the previous time interval at which the object temperature sensor (°F) was queried last. More...

virtual void	setSensorObjectTempFPeriodPrv (long period)
	Sets a timestamp for when the object temperature sensor (°F) was queried. More...

virtual bool	getEventObjectTempF (sensors_event_t *objectTempFEvent)
	Helper function to obtain a sensor's object temperature value in °F. Requires `getEventObjectTemp()` to be fully implemented by a driver. More...

virtual long	getSensorGasResistancePeriod ()
	Base implementation - Returns the gas resistance (ohms) sensor's period, if set. More...

virtual long	getSensorGasResistancePeriodPrv ()
	Base implementation - Returns the previous time interval at which the gas resistance sensor (ohms) was queried last. More...

virtual void	setSensorGasResistancePeriodPrv (long period)
	Sets a timestamp for when the object gas resistance sensor was queried. More...

virtual bool	getEventGasResistance (sensors_event_t *gasEvent)
	Base implementation - Reads a gas resistance sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorNOxIndexPeriod ()
	Base implementation - Returns the NOx Index sensor's period, if set. More...

virtual long	getSensorNOxIndexPeriodPrv ()
	Base implementation - Returns the previous time interval at which the NOx Index sensor was queried last. More...

virtual void	setSensorNOxIndexPeriodPrv (long period)
	Sets a timestamp for when the object NOx Index sensor was queried. More...

virtual bool	getEventNOxIndex (sensors_event_t *gasEvent)
	Base implementation - Reads a NOx Index sensor and converts the reading into the expected SI unit. More...

virtual long	getSensorVOCIndexPeriod ()
	Base implementation - Returns the VOC Index sensor's period, if set. More...

virtual long	getSensorVOCIndexPeriodPrv ()
	Base implementation - Returns the previous time interval at which the VOC Index sensor was queried last. More...

virtual void	setSensorVOCIndexPeriodPrv (long period)
	Sets a timestamp for when the object VOC Index sensor was queried. More...

virtual bool	getEventVOCIndex (sensors_event_t *gasEvent)
	Base implementation - Reads a VOC Index sensor and converts the reading into the expected SI unit. More...

virtual void	enableSensorProximity ()
	Enables the device's proximity sensor, if it exists.

virtual void	disableSensorProximity ()
	Disables the device's object proximity sensor, if it exists.

virtual long	sensorProximityPeriod ()
	Base implementation - Returns the proximity sensor's period, if set. More...

virtual void	setSensorProximityPeriod (long period)
	Set the proximity sensor's return frequency. More...

virtual long	SensorProximityPeriodPrv ()
	Base implementation - Returns the previous time interval at which the proximity sensor was queried last. More...

virtual void	setSensorProximityPeriodPrv (long period)
	Sets a timestamp for when the proximity sensor was queried. More...

virtual bool	getEventProximity (sensors_event_t *proximityEvent)
	Base implementation - Reads a proximity sensor and converts the reading into the expected SI unit. More...

virtual void	updateSensorProximity (float period)
	Updates the properties of a proximity sensor. More...

Additional Inherited Members
Protected Attributes inherited from WipperSnapper_I2C_Driver
TwoWire *	_i2c
	Pointer to the I2C driver's Wire object.

uint16_t	_sensorAddress
	The I2C driver's unique I2C address.

long	_tempSensorPeriod
	The time period between reading the temperature sensor's value. More...

long	_tempSensorPeriodPrv

long	_humidSensorPeriod
	The time period between reading the humidity sensor's value. More...

long	_humidSensorPeriodPrv

long	_pressureSensorPeriod
	The time period between reading the pressure sensor's value. More...

long	_pressureSensorPeriodPrv

long	_CO2SensorPeriod
	The time period between reading the CO2 sensor's value. More...

long	_CO2SensorPeriodPrv
	The time when the CO2 sensor was last read. More...

long	_ECO2SensorPeriod
	The time period between reading the eCO2 sensor's value. More...

long	_ECO2SensorPeriodPrv
	The time when the eCO2 sensor was last read. More...

long	_TVOCSensorPeriod
	The time period between reading the TVOC sensor's value. More...

long	_TVOCSensorPeriodPrv
	The time when the TVOC sensor was last read. More...

long	_altitudeSensorPeriod
	The time period between reading the altitude sensor's value. More...

long	_altitudeSensorPeriodPrv

long	_objectTempSensorPeriod = 0L

long	_objectTempSensorPeriodPrv

long	_lightSensorPeriod
	The time period between reading the light sensor's value. More...

long	_lightSensorPeriodPrv

long	_PM10SensorPeriod
	The time period between reading the pm25 sensor's value. More...

long	_PM10SensorPeriodPrv
	The time when the pm25 sensor was last read. More...

long	_PM25SensorPeriod
	The time period between reading the pm25 sensor's value. More...

long	_PM25SensorPeriodPrv
	The time when the pm25 sensor was last read. More...

long	_PM100SensorPeriod
	The time period between reading the pm100_std sensor's value. More...

long	_PM100SensorPeriodPrv

long	_unitlessPercentPeriod
	The time period between reading the unitless % sensor's value. More...

long	_unitlessPercentPeriodPrv

long	_voltagePeriod
	The time period between reading the voltage sensor's value. More...

long	_voltagePeriodPrv

long	_currentPeriod
	The time period between reading the current sensor's value. More...

long	_currentPeriodPrv

long	_rawSensorPeriod
	The time period between reading the Raw sensor's value. More...

long	_rawSensorPeriodPrv
	The time when the Raw sensor was last read. More...

long	_ambientTempFPeriod = 0L

long	_ambientTempFPeriodPrv

long	_objectTempFPeriod = 0L

long	_objectTempFPeriodPrv

long	_gasResistancePeriod = 0L

long	_gasResistancePeriodPrv

long	_NOxIndexPeriod
	The time period between reading the NOx Index sensor's value. More...

long	_NOxIndexPeriodPrv

long	_VOCIndexPeriod
	The time period between reading the VOC Index sensor's value. More...

long	_VOCIndexPeriodPrv

long	_proximitySensorPeriod
	The time period between reading the proximity sensor's value. More...

long	_proximitySensorPeriodPrv

Detailed Description

Derived class for I2C output component drivers.

Constructor & Destructor Documentation

◆ WipperSnapper_I2C_Driver_Out()

WipperSnapper_I2C_Driver_Out::WipperSnapper_I2C_Driver_Out	(	TwoWire *	i2c,
		uint16_t	sensorAddress
	)

inline

Creates a new I2C output component driver.

Parameters

i2c	The I2C hardware interface, default is Wire.
sensorAddress	The I2C sensor's unique address.

Member Function Documentation

◆ WriteMessage()

virtual void WipperSnapper_I2C_Driver_Out::WriteMessage ( const char * message )

inlinevirtual

Writes a message to an i2c output device.

Parameters

message The message to be displayed.

Reimplemented in WipperSnapper_I2C_Driver_Out_7Seg, WipperSnapper_I2C_Driver_Out_QuadAlphaNum, and WipperSnapper_I2C_Driver_Out_CharLcd.

◆ ConfigureSSD1306()

virtual void WipperSnapper_I2C_Driver_Out::ConfigureSSD1306	(	uint8_t	width,
		uint8_t	height,
		uint8_t	text_size,
		uint8_t	rotation = `0`
	)

inlinevirtual

Configures a SSD1306 OLED display. Must be called before driver begin()

Parameters

width	The width of the display in pixels.
height	The height of the display in pixels.
text_size	The display's text size.
rotation	The rotation of the display in degrees, default is 0.

Reimplemented in WipperSnapper_I2C_Driver_Out_SH1107, and WipperSnapper_I2C_Driver_Out_Ssd1306.

◆ WriteMessageSSD1306()

virtual void WipperSnapper_I2C_Driver_Out::WriteMessageSSD1306 ( const char * message )

inlinevirtual

Writes a message to the SSD1306 display.

Parameters

message The message to be displayed.

Reimplemented in WipperSnapper_I2C_Driver_Out_SH1107, and WipperSnapper_I2C_Driver_Out_Ssd1306.

◆ ConfigureI2CBackpack()

virtual void WipperSnapper_I2C_Driver_Out::ConfigureI2CBackpack	(	int32_t	brightness,
		uint32_t	alignment
	)

inlinevirtual

Configures a LED backpack.

Parameters

brightness	The brightness of the LED backpack.
alignment	The alignment of the LED backpack.

Reimplemented in WipperSnapper_I2C_Driver_Out_7Seg, and WipperSnapper_I2C_Driver_Out_QuadAlphaNum.

◆ SetLedBackpackBrightness()

virtual void WipperSnapper_I2C_Driver_Out::SetLedBackpackBrightness ( uint8_t b )

inlinevirtual

Sets the brightness of the LED backpack.

Parameters

b	The brightness value, from 0 (off) to 15 (full brightness).

Reimplemented in WipperSnapper_I2C_Driver_Out_7Seg, and WipperSnapper_I2C_Driver_Out_QuadAlphaNum.

◆ WriteLedBackpack()

void WipperSnapper_I2C_Driver_Out::WriteLedBackpack ( wippersnapper_i2c_v1_LEDBackpackWrite * msg_write )

inline

Writes a message to the LED backpack.

Parameters

msg_write Pointer to a wippersnapper_i2c_v1_LedBackpackWrite message.

◆ ConfigureCharLcd()

virtual void WipperSnapper_I2C_Driver_Out::ConfigureCharLcd	(	uint32_t	rows,
		uint32_t	cols
	)

inlinevirtual

Configures a character LCD.

Parameters

rows	The number of rows in the LCD.
cols	The number of columns in the LCD.

◆ EnableCharLcdBacklight()

void WipperSnapper_I2C_Driver_Out::EnableCharLcdBacklight ( bool enable )

inline

Turns the character LCD backlight on or off.

Parameters

enable True to enable the backlight, false to disable it.

◆ WriteMessageCharLCD()

void WipperSnapper_I2C_Driver_Out::WriteMessageCharLCD	(	wippersnapper_i2c_v1_CharLCDWrite *	write_char_lcd,
		bool	enable_backlight = `true`
	)

inline

Writes a message to the LCD.

Parameters

write_char_lcd	Points to a CharLCDWrite message.
enable_backlight	True if the backlight should be enabled, false otherwise.

The documentation for this class was generated from the following file:

src/components/i2c/drivers/WipperSnapper_I2C_Driver_Out.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ WipperSnapper_I2C_Driver_Out()

Member Function Documentation

◆ WriteMessage()

◆ ConfigureSSD1306()

◆ WriteMessageSSD1306()

◆ ConfigureI2CBackpack()

◆ SetLedBackpackBrightness()

◆ WriteLedBackpack()

◆ ConfigureCharLcd()

◆ EnableCharLcdBacklight()

◆ WriteMessageCharLCD()
